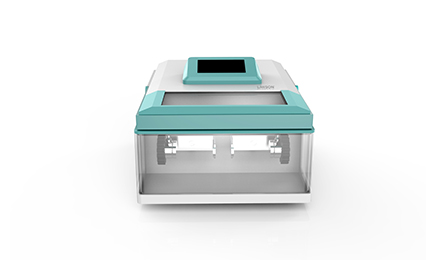

DH-S2010IN
Cryogenic Milling
11Setting of vibrational frequency: digital, 0 – 70 Hz (0 – 3000 min-1),Feed material: hard, medium-hard, soft, brittle, elastic, fibrous

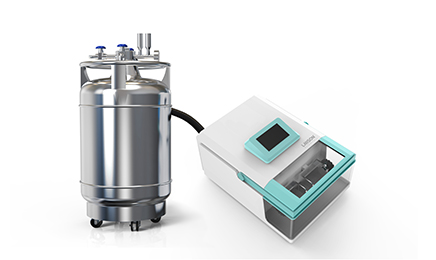

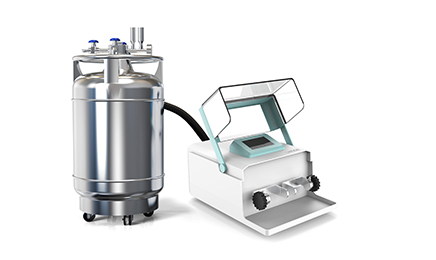

The liquid nitrogen circulates through the system and is continually replenished from an Autofill system in the exact amount which is required to keep the temperature at -196 °C.

Product Features
Cryogenic Milling DH-S2010IN instrument, which is a product launched for "small samples".
Cryogenic Milling can quickly and effectively dry or wet grind hard, soft, and elastic samples within 1-3 minutes. It can also achieve the purpose of mixing and homogenizing powder and turbid liquids. It can be used for cryogenic grinding with liquid nitrogen, as well as for biological cell disruption and DNA/RNA extraction. The types of samples that the high-throughput tissue grinder can grind include: plant tissues, animal tissues, cells, bacteria, spores, and yeasts.

Product Features

Cryogenic Milling DH-S2010IN instrument, which is a product launched for "small samples".

Cryogenic Milling can quickly and effectively dry or wet grind hard, soft, and elastic samples within 1-3 minutes. It can also achieve the purpose of mixing and homogenizing powder and turbid liquids. It can be used for cryogenic grinding with liquid nitrogen, as well as for biological cell disruption and DNA/RNA extraction. The types of samples that the high-throughput tissue grinder can grind include: plant tissues, animal tissues, cells, bacteria, spores, and yeasts.

Product Applications
Sample Types for Grinding:
1. Within 1-3 minutes, 24, 48, and 192 samples can be quickly and effectively ground.
2. Closed LN2-system (autofill) for enhanced safety, avoids any contact of the user with LN2.
3. Various centrifuge tubes, PCR tube adapters, or grinding jars of different materials can be selected.
4. 8-shaped vibration, sample grinding without dead corners.
5. Simple and safe operation design.
6. Exquisite and compact appearance.
7. Screw cap grinding jar, sealed and dustproof.
8. Screw cap grinding jar, sealed and dustproof.
9. Suitable for dry and wet grinding of a variety of samples.
10. Programmable cooling and grinding cycles (10 s to 99 min).
11. 3 different grinding modes (dry, wet or cryogenic).
12. 20 SOPs can be stored.
13. Grinding jars of the DH-S2010IN perform radial oscillations in a horizontal position. The inertia of the grinding balls causes them to impact with high energy on the sample material at the rounded ends of the grinding jars and pulverize it. Also, the movement of the grinding jars combined with the movement of the balls result in the intensive mixing of the sample.

Function Principle
The grinding jars of the DH-S2010 perform radial oscillations in a horizontal position. The inertia of the grinding balls causes them to impact with high energy on the sample material at the rounded ends of the grinding jars and pulverize it. Also, the movement of the grinding jars combined with the movement of the balls result in the intensive mixing of the sample.
The grinding jar is continually cooled with liquid nitrogen from the integrated cooling system before and during the grinding process.

Technical Specifications
Applications:	size reduction, mixing, homogenization, cell disruption, cryogenic grinding
Field of application:	agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material:	hard, medium-hard, soft, brittle, elastic, fibrous
Size reduction principle:	impact, friction
Material feed size:	≤8 mm
Final fineness:	~ 5 µm
Batch size / feed quantity:	max. 2 x 50 ml
No. of grinding stations:	2
Setting of vibrational frequency:	digital, 0 – 70 Hz (0 – 3000 min-1)
Typical mean grinding time:	30 s – 2 min
Grinding method:	Dry grinding/Wet grinding/Cryogenic grinding
Cell disruption with reaction vials:	yes, up to 96 x 2.0 ml
Self-centering clamping device:	yes
Type of grinding jars:	screw top design
Material of grinding tools:	hardened steel, stainless steel, tungsten carbide, agate, zirconium oxide, PTFE
Grinding ball material:	Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand
Grinding jar sizes:	1.5 ml / 5 ml / 10 ml / 25 ml / 35 ml / 50ml
Setting of grinding time:	digital, 10 s – 99 min
Storable SOPs:	20
Power consumption:	150 W
W x H x D closed:	380270490
Net weight:	26kg
Electrical supply data:	100-240 V, 50/60 Hz
